Get step-by-step demos and learn how to create 6 different visuals for DevOps, IoT, geospatial, and public data scenarios (and beyond).
We just kicked off a new “Grafana 101” webinar series, a set of technical sessions focused on getting you up and running with Grafana’s various capabilities (there are tons!) - complete with step-by-step demos, tips, and resources to re-create what we cover.
In the first session, “Grafana 101: Creating Awesome Visualizations,” I show how to build 6 common Grafana visuals, plus a few tips and tricks to help you along the way, so you leave ready to create useful, interactive, and awesome Grafana dashboards for your projects.
We know not everyone could make it live, so we’ve published the recording and slides for anyone and everyone to access at any time.
Based on my own experience with Grafana and my conversations with other developers, building useful Grafana visualizations isn’t always easy.
So, to reduce that learning curve, I created this session to illustrate the common visualization types, datasets, and tips and tricks (like variables, series-override, and thresholds) that have helped me get up and running.
I made sure to cater to new and existing Grafana users, quickly covering why you’d use Grafana to build dashboards and a quick overview of how Grafana is structured (terminology, hierarchy, etc.). From there, I go straight into step-by-step demos to show you how to build 6 common visuals, in 3 scenarios: DevOps, IoT monitoring with geospatial data, and public datasets.
More specifically, the session consists of 4 parts:
In my opinion, Grafana is a great choice for dashboarding for three main reasons:

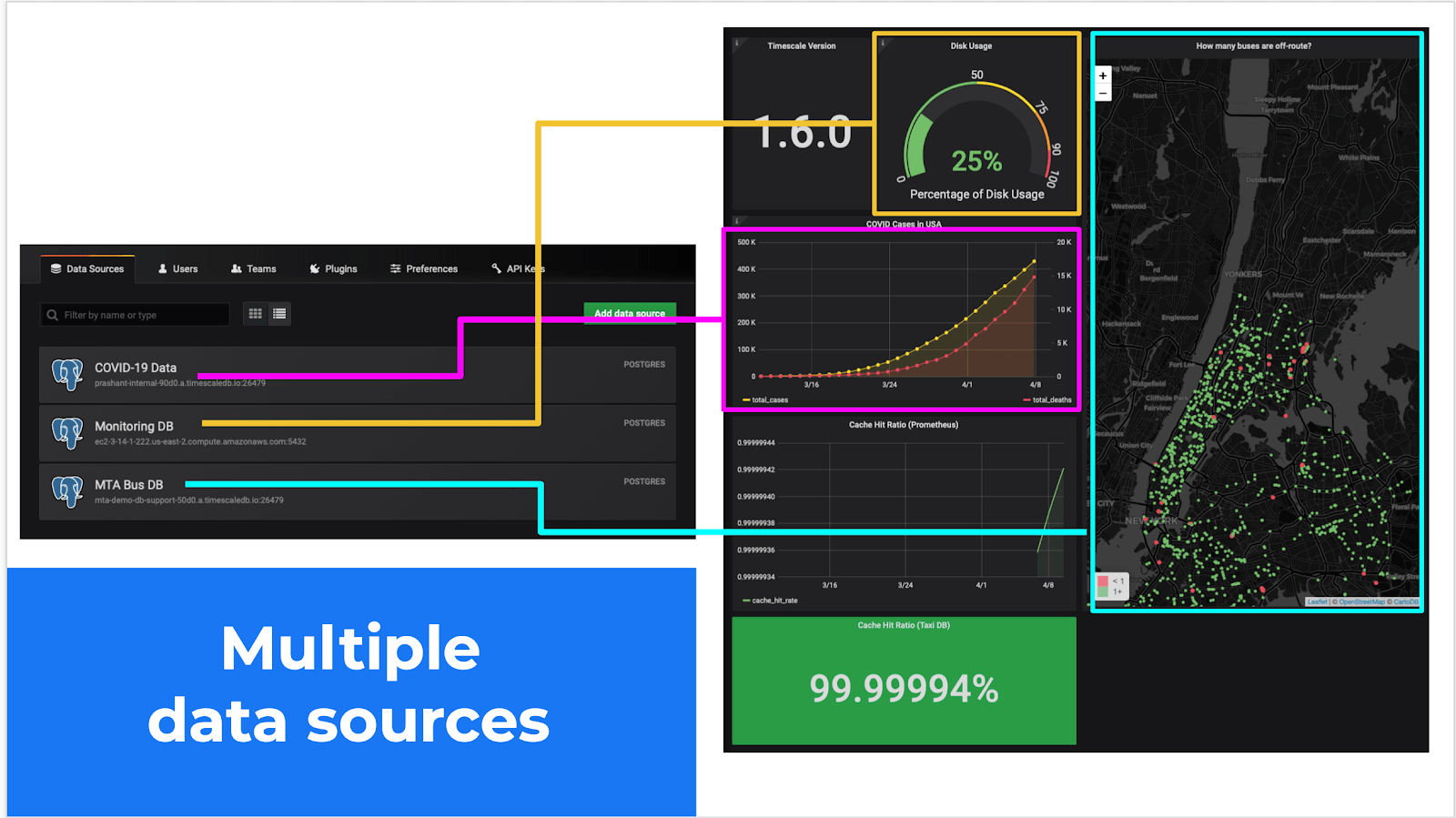

In this section, I introduce a basic “mental model” for thinking about how Grafana is structured, introducing its hierarchy of instances, data sources, dashboards, and panels.

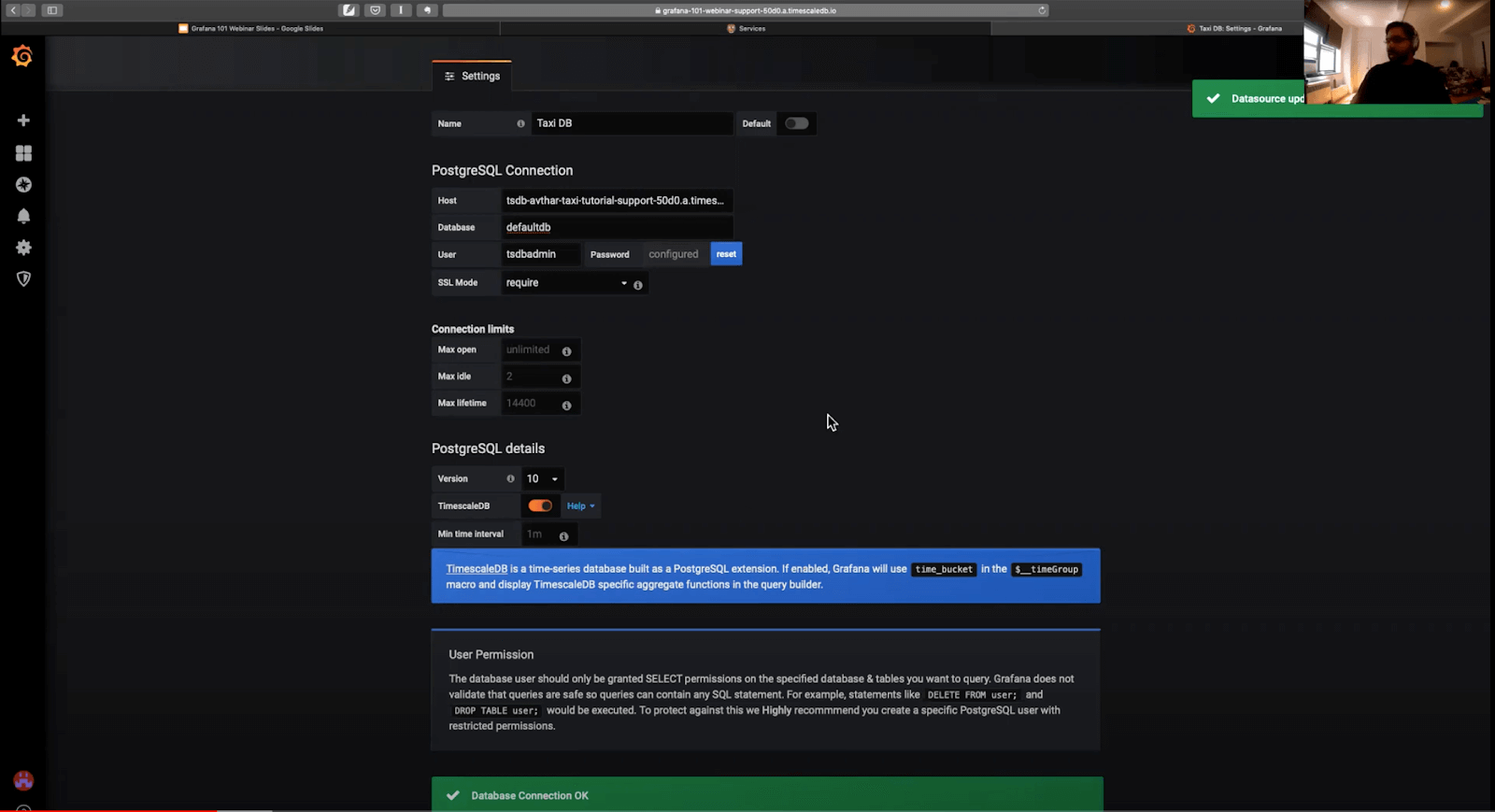

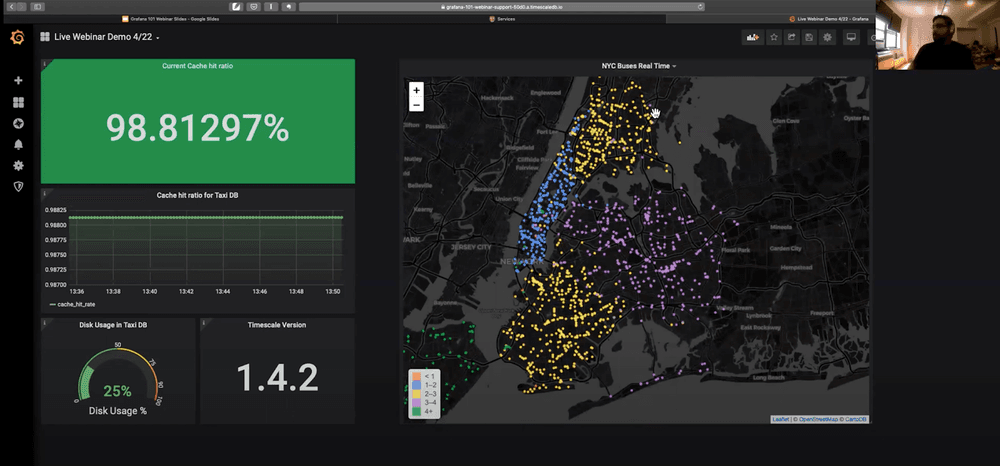

You’ll also get a walkthrough of a dashboard powered by multiple data sources and see how to connect a TimescaleDB database to Grafana (I’ll use TimescaleDB as my datasource to demo various visualizations).
After getting oriented with Grafana, it’s time for the best part: creating the visuals!
I spend 45 minutes taking you through how to create 6 visuals, using the use cases of DevOps, IoT and geospatial data, and charting the spread of COVID-19.

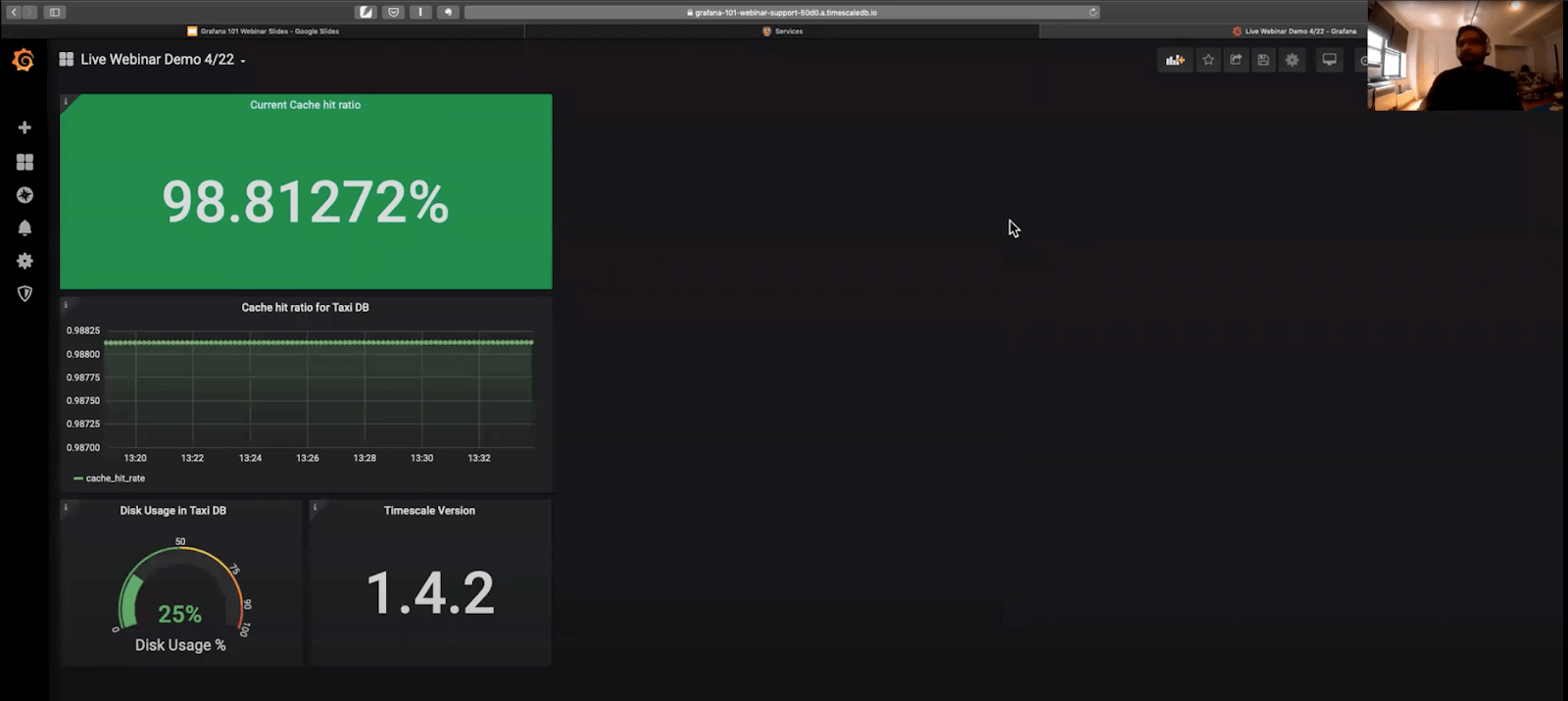

DevOps: Monitoring a production database using Prometheus and TimescaleDB
If you’re working in a DevOps scenario, you likely need to monitor various key metrics, and, in the case of my demo, I want to monitor my production database.
You’ll see how to set thresholds and build visualizations to answer questions about database performance and status.
Grafana visualization types and questions we answer:
Note: We use the dataset from this tutorial on using Timescale as a long term datastore for Prometheus metrics.
And, we’re at work on a new connector for Prometheus. If you’re interested in learning more and trying it out, you can check out our design doc and GitHub repo.
IoT / GeoSpatial: Monitoring Public Bus Locations in New York City
Using data from the New York Metropolitan Transport Authority, I show you how to combine time-series and geospatial data to display the real-time location of various buses throughout New York City.
In this section, I focus on one of my favorite visualization types, the Worldmap Panel.
Grafana visualization type and question we answer:

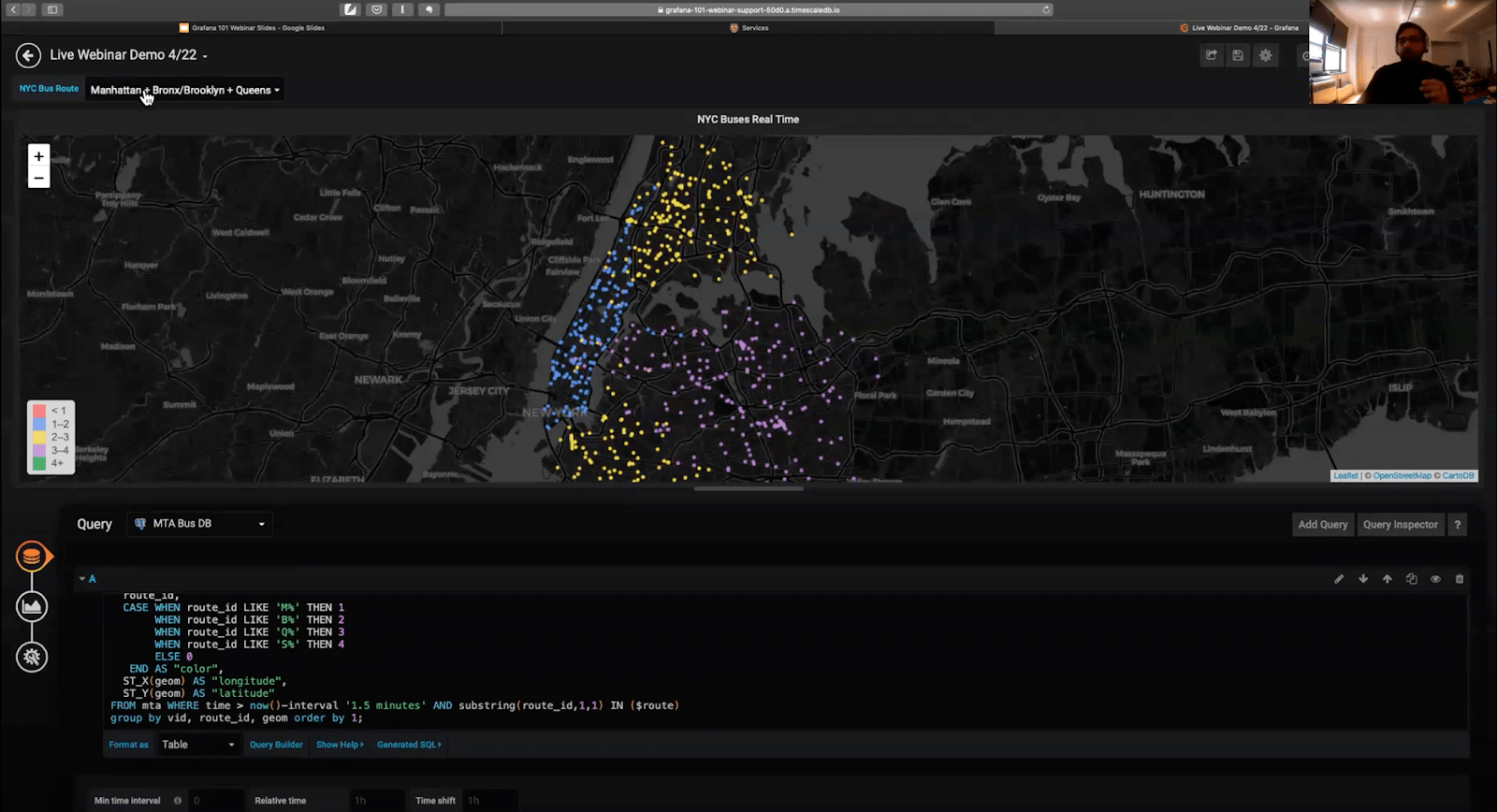

As a bonus, I also show you how to use variables to allow users to filter the bus routes and locations that appear on the map. This turns the dashboard from a static visual into an interactive one, where anyone can select various routes they want to see from an interactive drop down menu.
You can learn more about variables and how they work here.
Public Data: Charting and analyzing trends in the spread of COVID-19 in the USA
Finally, I chart the spread of COVID-19 in the USA, using publicly available data from the New York Times.
series-override in this example using COVID-19 dataGrafana visualization type and questions we answer:

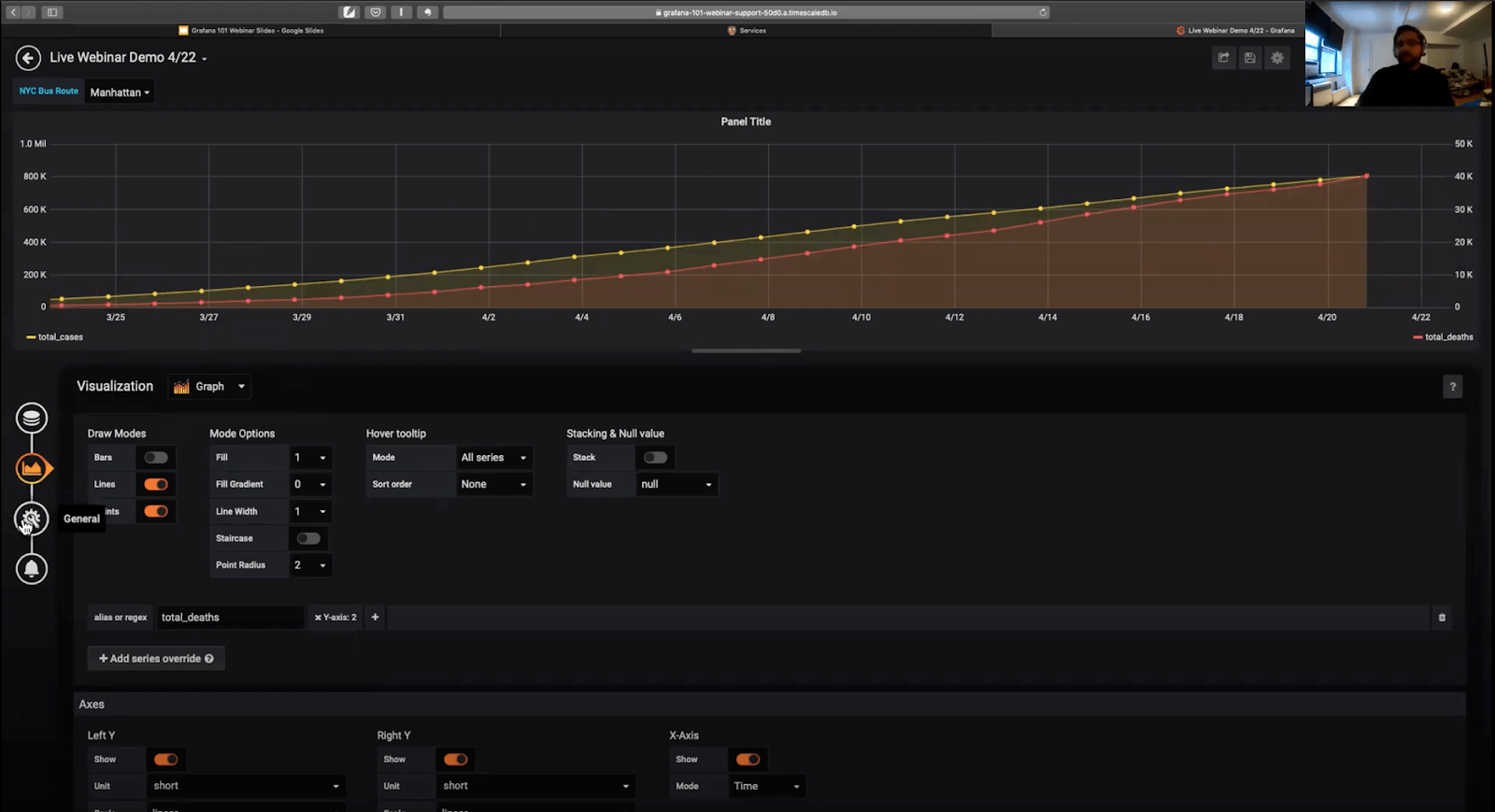

You’ll also see how to use Grafana’s series-override function to plot your data on two Y-axes and more accurately show COVID-19 case and death rates over time (something that’s lost due the variables relative scale when both variables are plotted using the same Y-axis).
Want to re-create the dashboards shown in the demo? Or perhaps you want to try modifying them to work with your own data sources for your projects? Don’t sweat, we have you covered!
In the session, we link to several resources, like tutorials and sample dashboards, to get you well on your way:
We received over 30 questions during the session (thank you to everyone who submitted one!). Here’s a selection:
Q: Is the PostgreSQL datasource "stock" in Grafana, or a TimescaleDB-specific one?
A: The PostgreSQL data source is stock in Grafana and was (fun fact) actually contributed by Timescaler Sven Klemm.
While you can use the PostgreSQL data source in Grafana for Postgres instances that don’t contain TimescaleDB; if you’re using TimescaleDB, we strongly recommend enabling TimescaleDB when setting up your data source, in order to get better performance (like I mention in the demo and as outlined in this tutorial).
Q: The latest PG version in the datasource in the demo was 10. What about later versions of PostgreSQL?
A: Grafana supports PG 11 and PG 12, but if you’re using Grafana 6.5.2, you may find that the version picker doesn’t include versions above PG 10 (as noted in this forum post).
From my reading, this has been fixed in the latest Grafana releases (6.6 and 6.7), so you can connect your TimescaleDB instances with PG 11 (and now PG 12!) to Grafana.
Q: When should I use a Gauge vs. a Single Stat?
A: Single Stats and Gauges both show a single number.
The main difference is that Gauges are generally for measuring the current state of consumption of fixed resources (e.g disk, memory, CPU etc.), or cases where it’s important to know usage relative to thresholds. For example, gauges are ideal to quickly let you know that you are currently at 80% of storage capacity.
On the other hand, Single Stats are well-suited for displaying current values (like counts), things like version numbers, or other one-off values.
Q: From a performance perspective, is it better to give reporting users pre-built views (like aggregates) or the raw time-series data directly?
A: If you’re optimizing for performance with regard to query speed and ingestion rate, using views, like TimescaleDB’s continuous aggregates, is the way to go.
That way, your reporting users query the continuous aggregates, which is faster than directly querying hypertables for the kind of aggregate queries reports require. Additionally, by not querying hypertables directly, you ensure higher insert performance (since you don’t have queries and inserts being performed on the same hypertable).
For use cases like dashboarding and IT Ops reporting, where you want the speed of querying aggregated views and also need fully up-to-date data, check out our new real-time aggregates feature.
Q: Variables, once defined, are visible across the whole dashboard. Is there a way to make variables visible only to relevant panels?
A: Grafana variables are dashboard-specific, not panel-specific, so multiple panels can access the same variable.
This is useful if you have several panels that use the same variable, but can be tricky if your panel:variable ratio is closer to 1:1 (this can be the case with many dashboards that depend on a variety of data sources, like a CTO dashboard that looks at details for multiple products and deployments).
There is no way to make variables apply only to specific panels, at the time of writing. However, there is an open issue on GitHub for you to add to and upvote.
Two quick tips:
Q: In the IT monitoring demo, your data was Prometheus metrics, stored in TimescaleDB. Can you explain a bit more about how TimescaleDB interacts with your Postgres table and Prometheus?
A: Many people are familiar with using Prometheus as a direct Grafana datasource.
But, in the demo, I use Prometheus to scrape metrics from my target (a database I’m monitoring), then use TimescaleDB as a remote read and write for Prometheus. This way, all of my Prometheus metrics are written to and stored in TimescaleDB, so I can query TimescaleDB for my metrics - rather than Prometheus directly.
This is useful because:
Learn more about why you should use a long-term store for Prometheus metrics and how to get started here.
Q: When are the next webinars in this series? Is there a way we can sign up to be notified?
A: Glad you asked! The next webinar in our Grafana 101 series is “Getting Started with Alerting” (Wednesday, May 20th at 10 am PT/1 pm ET / 4 pm GMT). I hope to see you there.
