How to Install TimescaleDB on Azure

TimescaleDB is a powerful, open-source time-series database built on top of PostgreSQL to efficiently manage time-series data, events, and analytics. Optimized for fast ingest and complex queries, it speaks “full SQL” and is correspondingly easy to use like a traditional relational database, yet scales in ways previously reserved for NoSQL databases.

This guide will walk you through the process of setting up TimescaleDB on Microsoft Azure, ensuring you have a scalable and high-performance database ready to handle your time-series data needs.

What you'll learn:

• Getting started with Azure
• Setting up your VM instance
• Installing TimescaleDB
• Configuring PostgreSQL
• Using TimescaleDB

Get Started With Azure and TimescaleDB

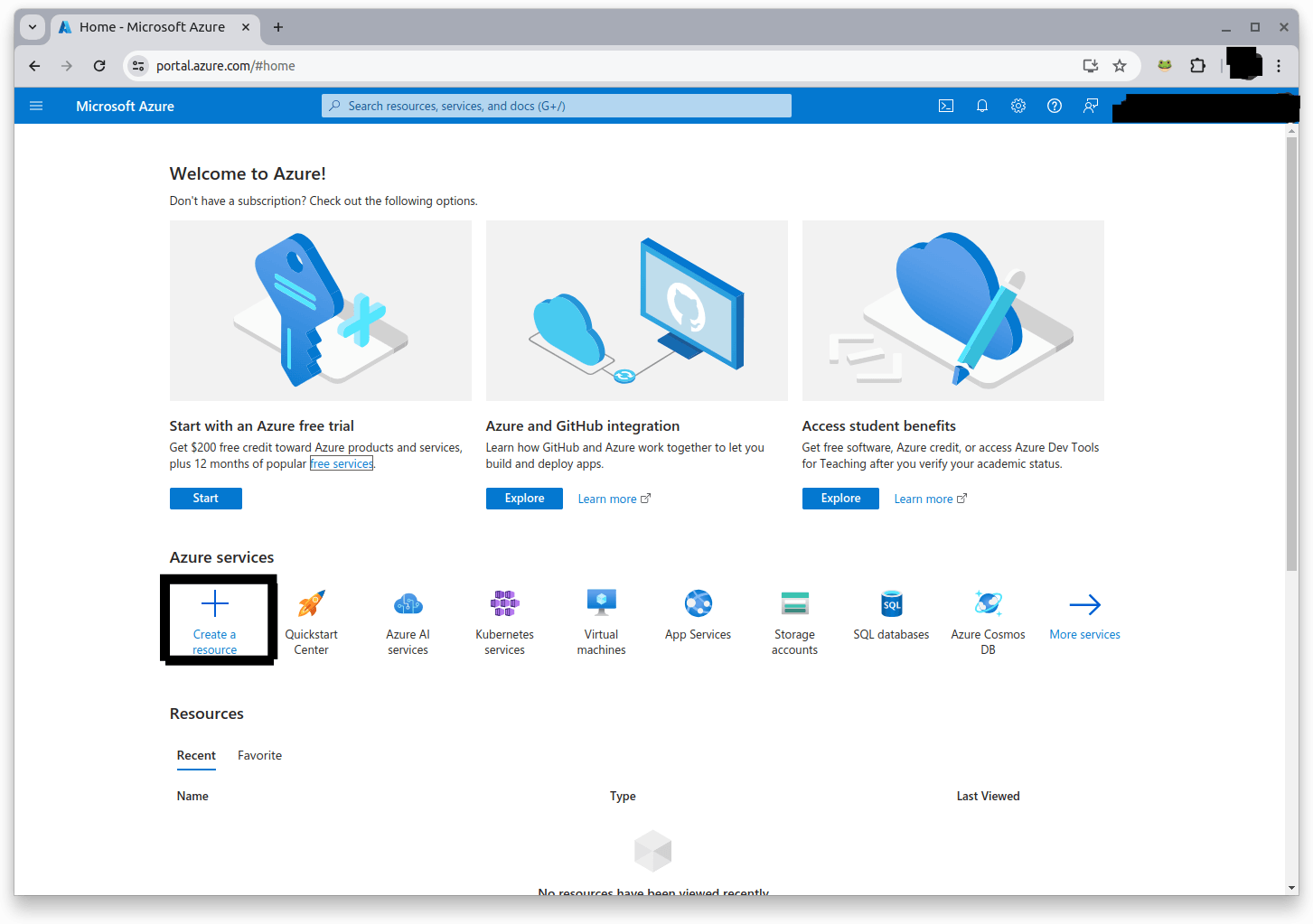

First, head over to Azure and create your Azure account. Once you've logged into the Azure portal, you'll see a dashboard similar to this:

Create a Virtual Machine (VM)

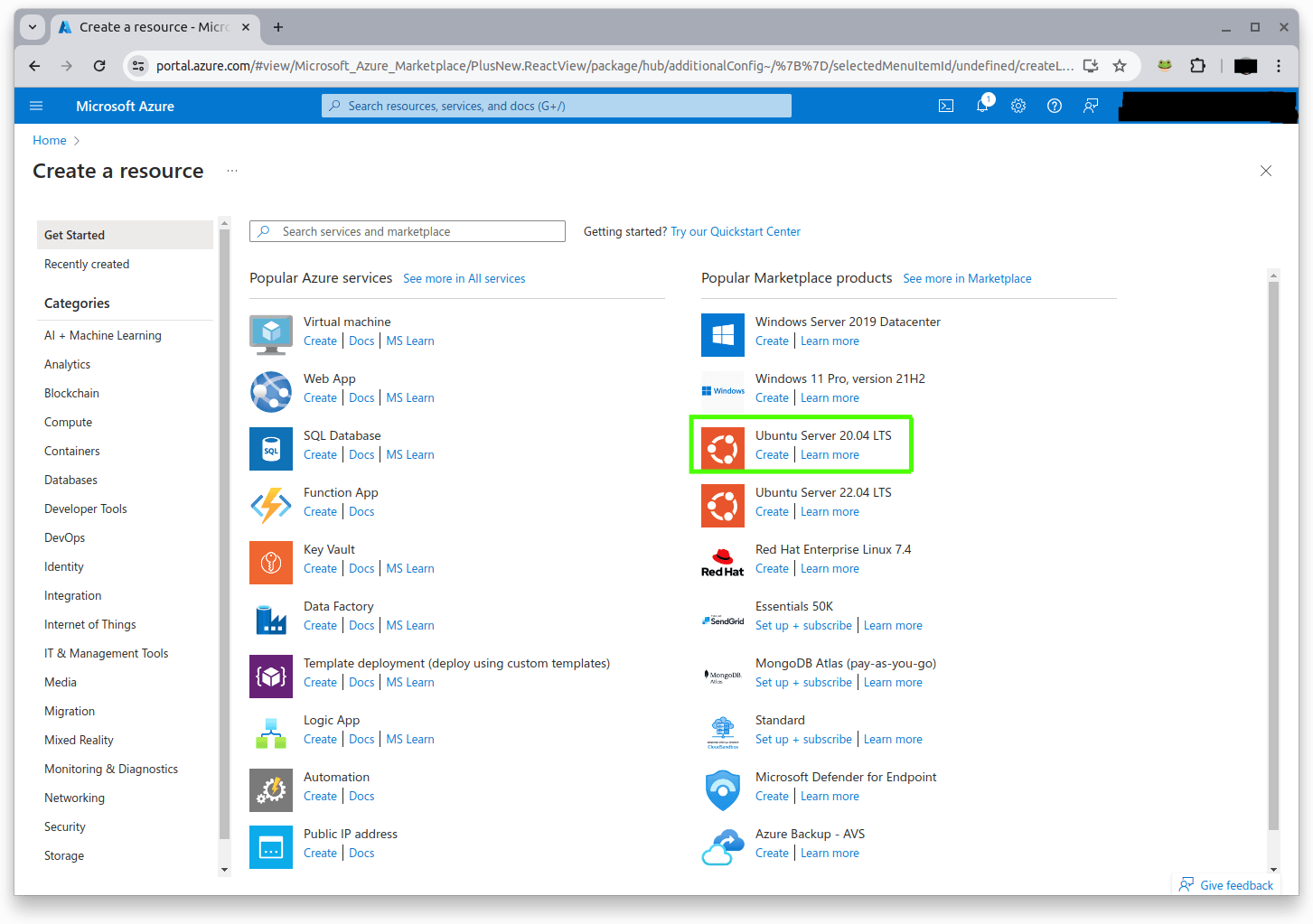

1. Navigate to the Azure Marketplace: In the Dashboard, click on "Create a resource" and search for "Ubuntu Server 20.04 LTS." Select it from the list.

2. Configure the VM: Click on "Create" and follow these steps:

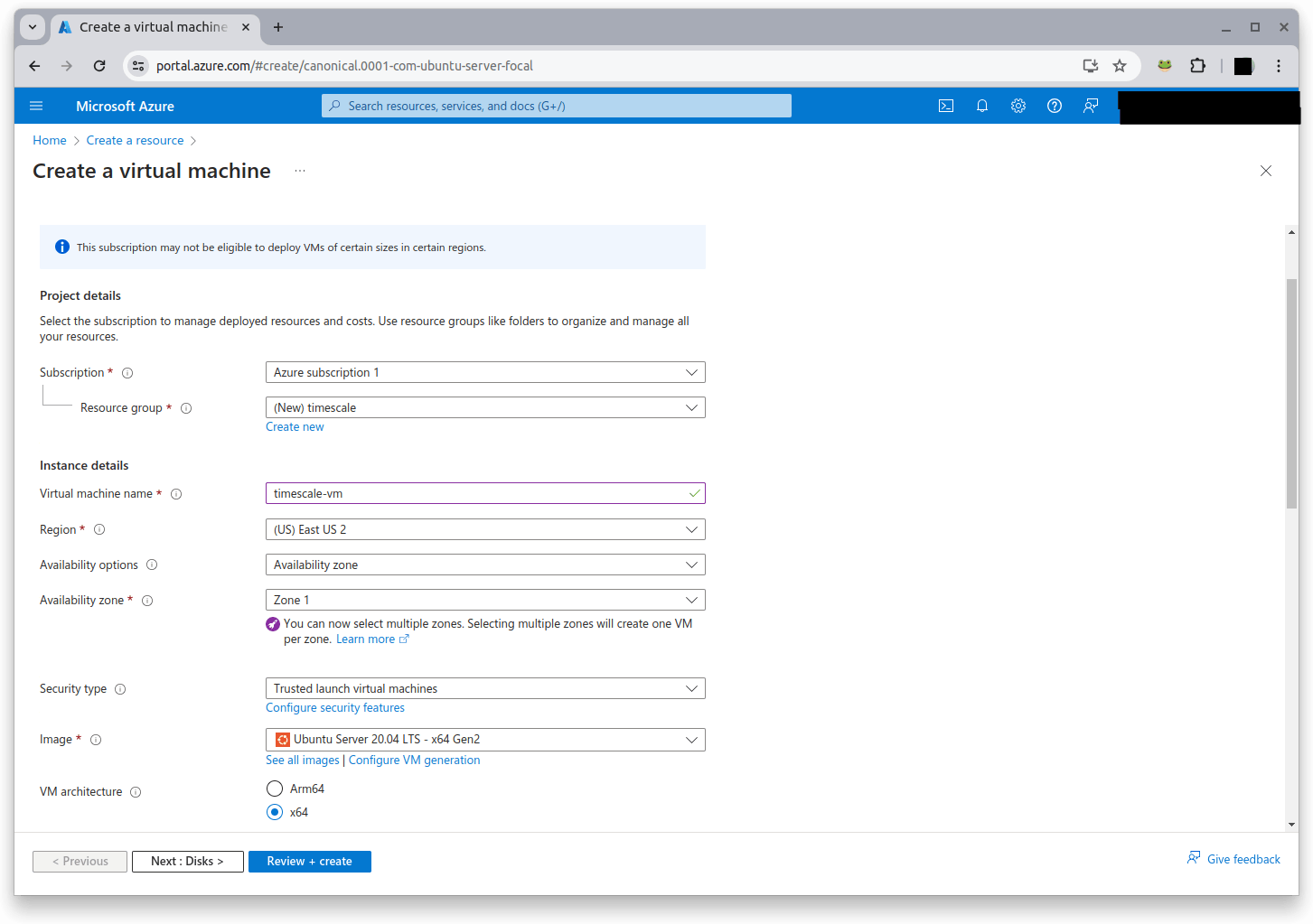

Basics:

• Subscription: Select your subscription.
• Resource group: Create a new resource group named timescale or use an existing one.
• Virtual machine name: Enter timescale-vm.
• Region: Select your preferred region.
• Image: Ensure "Ubuntu Server 20.04 LTS" is selected.
• Size: Select Standard_B1s for this tutorial.

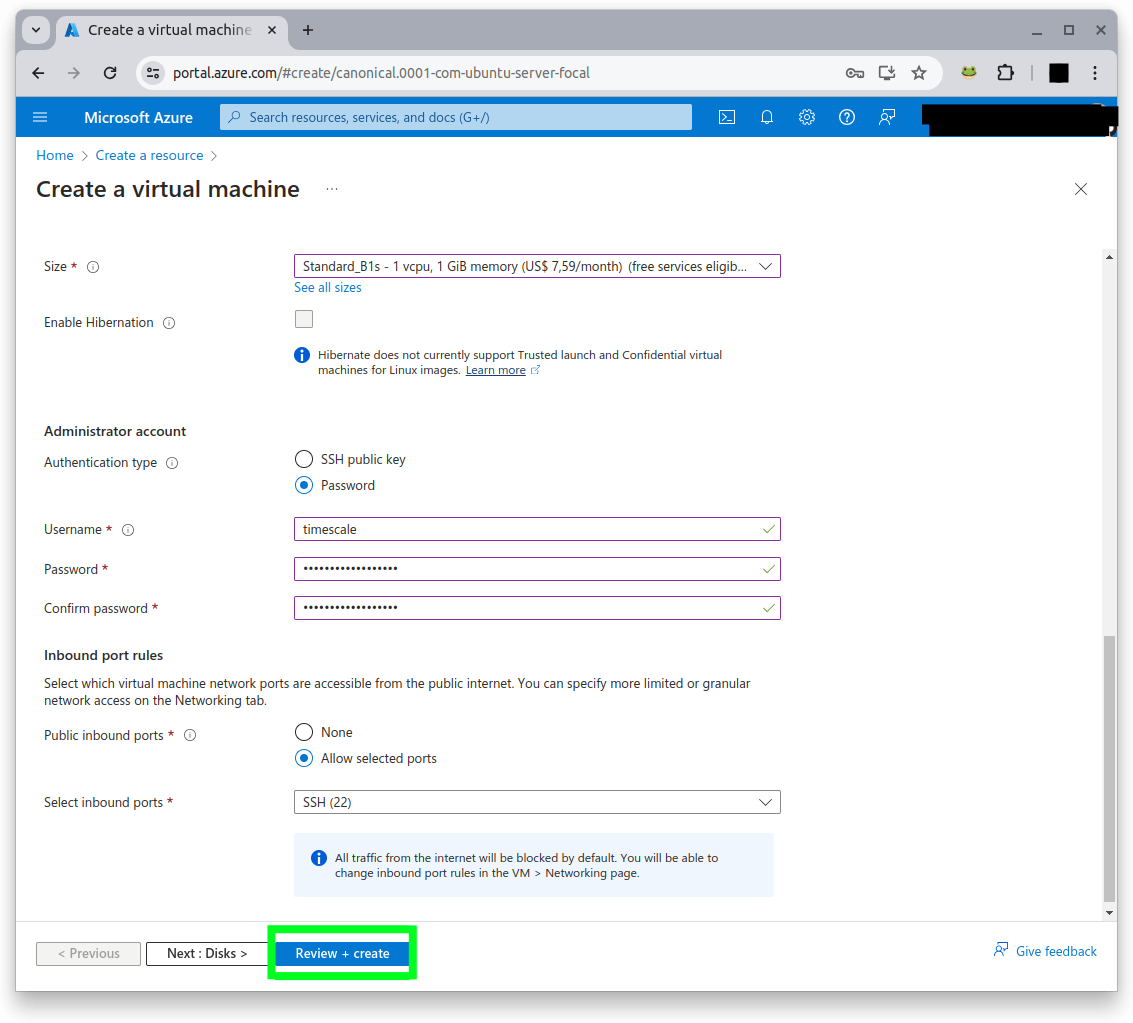

Administrator account:

• Authentication type: Select "Password".
• Username: Enter your preferred username. We will use "timescale".
• Password: Enter a strong password.

• Disks: Use the default settings for simplicity.
• Networking: Use the default settings.
• Management: Use the default settings.
• Advanced: Use the default settings.
• Tags: Optionally, add tags for resource management.

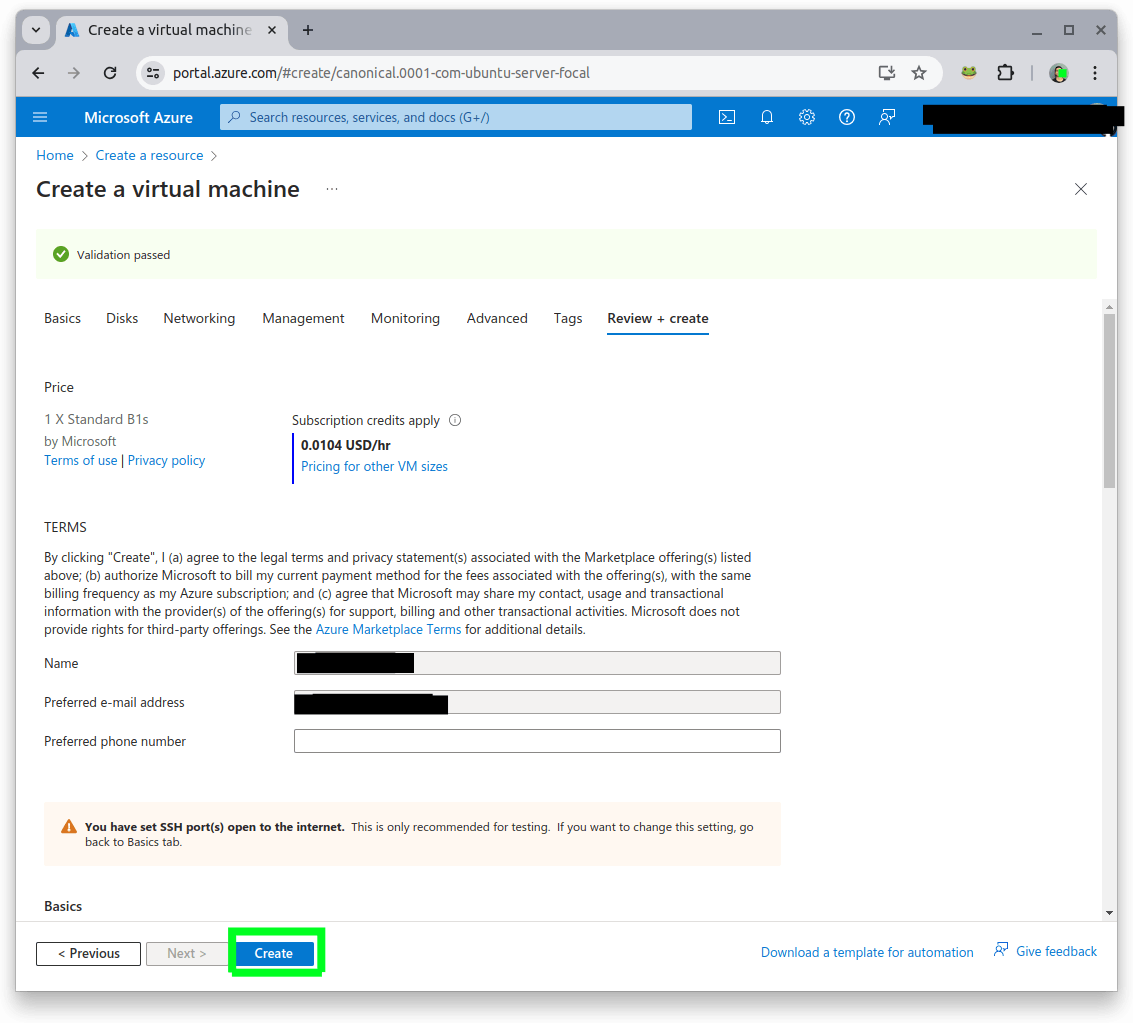

• Review + create: Review your settings.

Click on "Create."

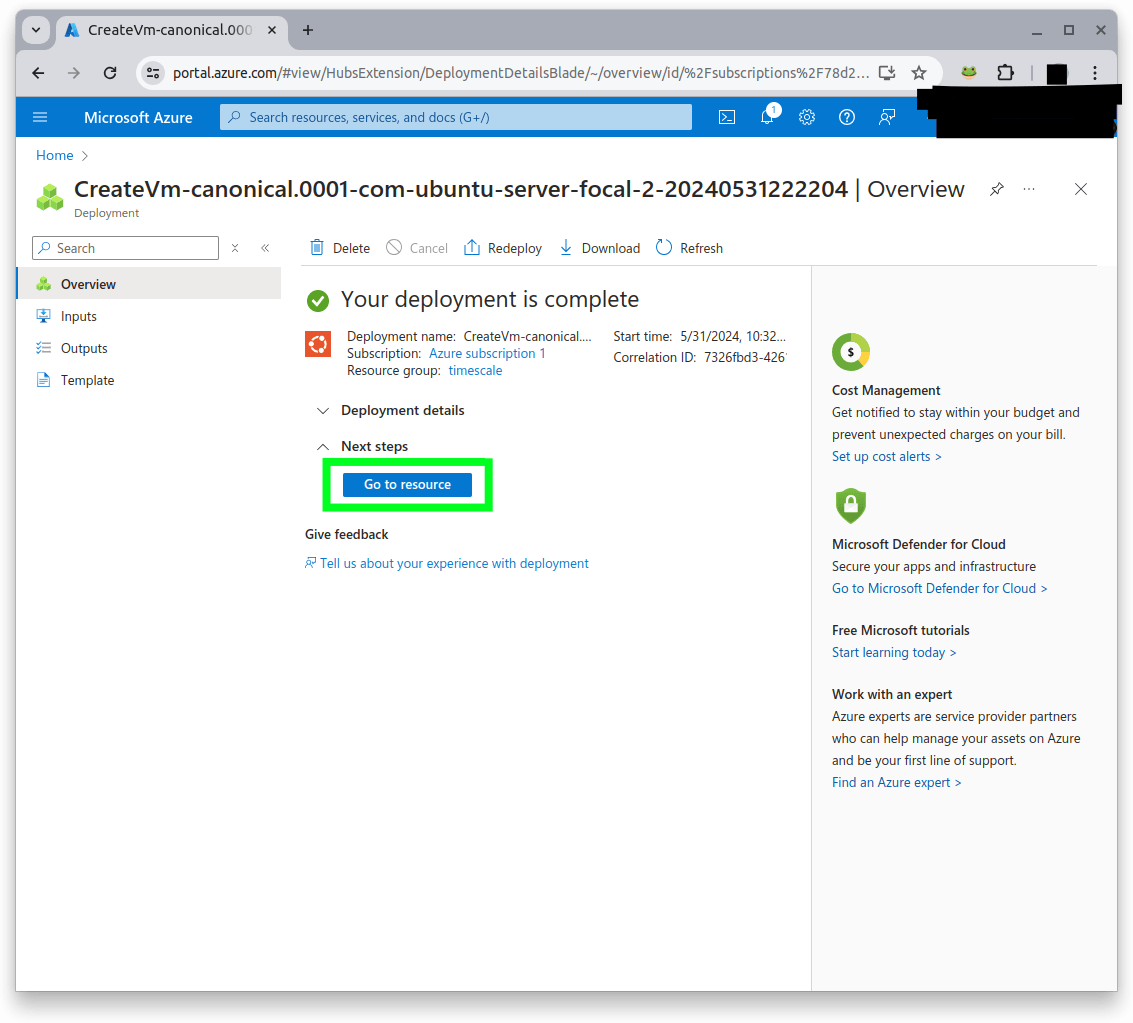

Once the deployment is completed, click on "Go to resource."

Connect to your VM

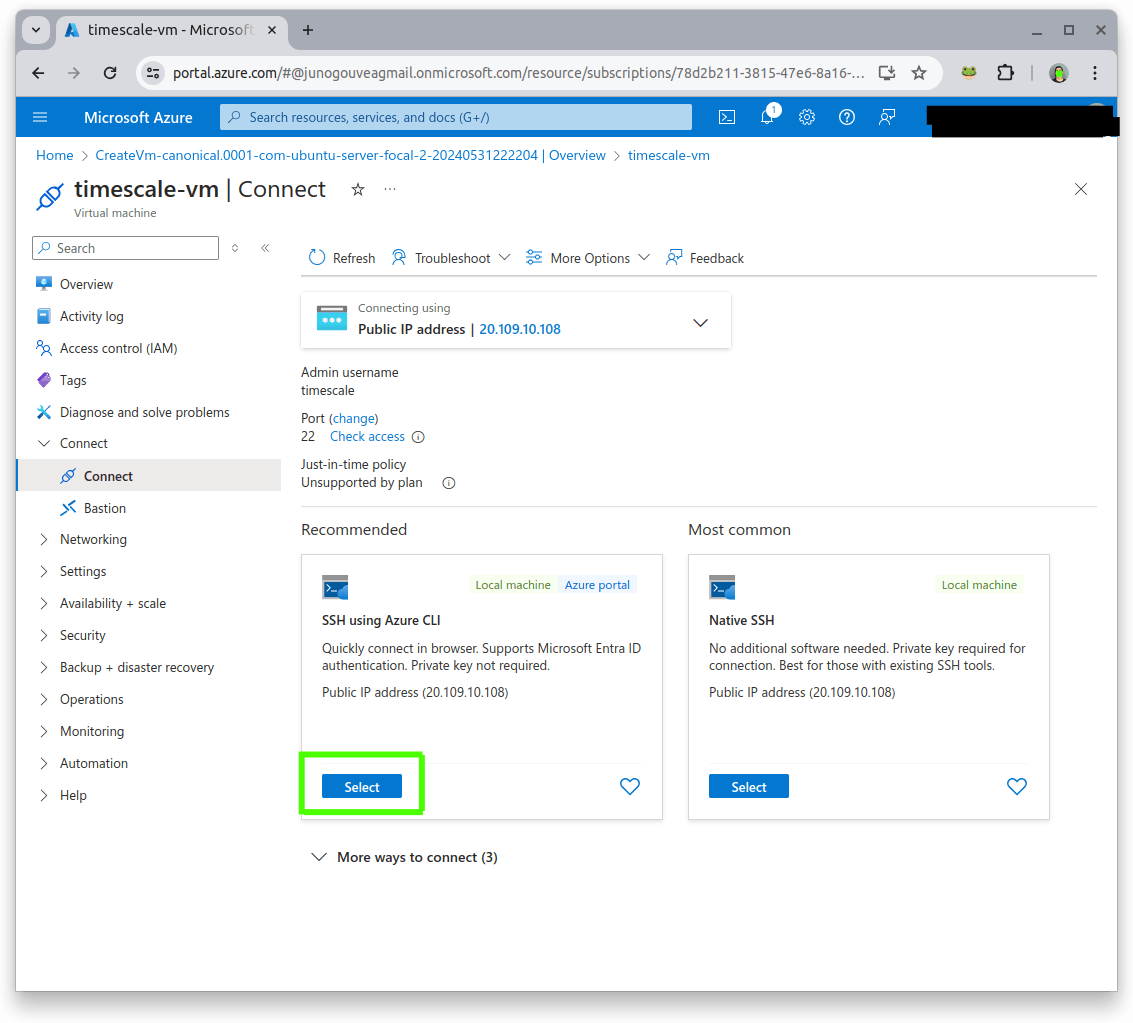

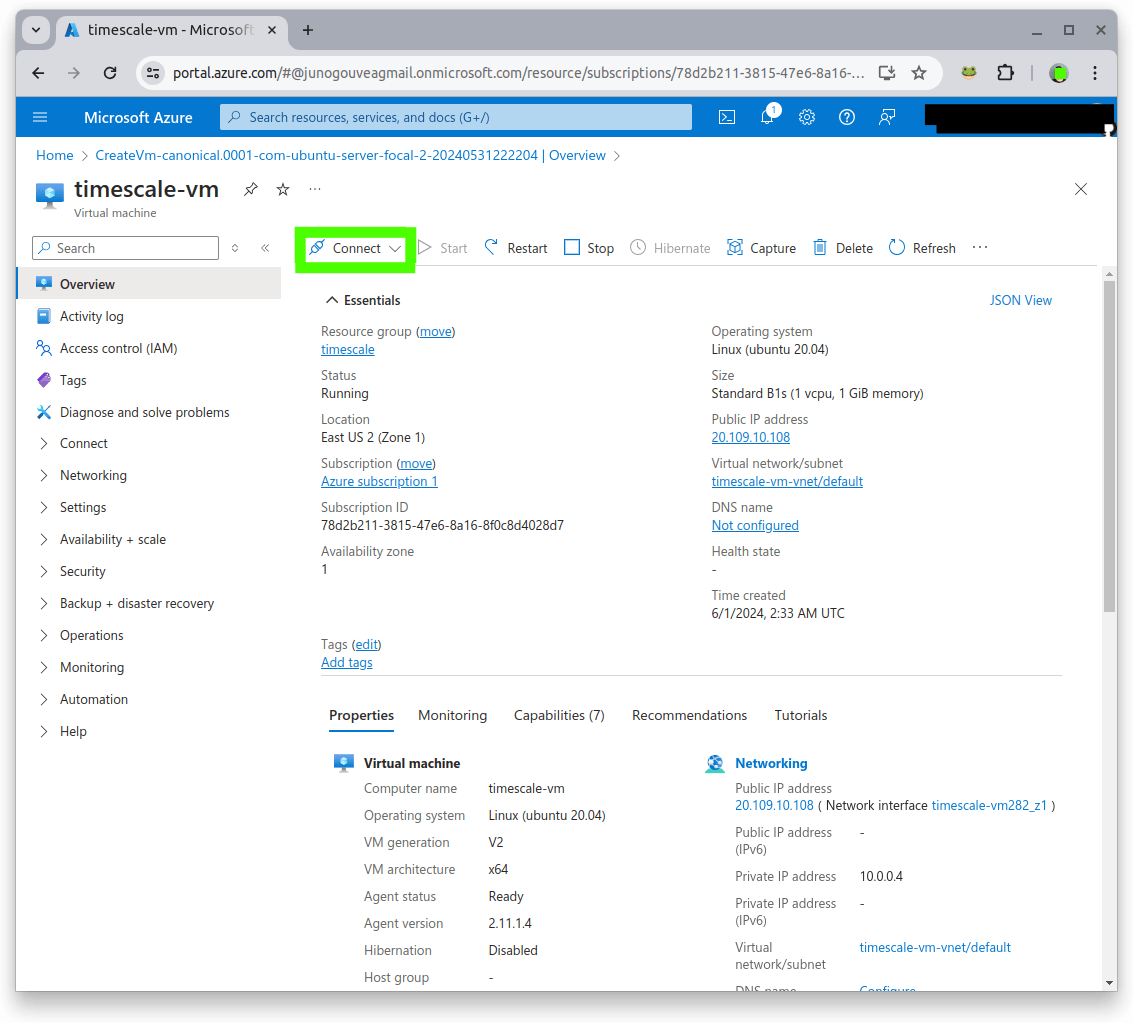

1. Once your VM is deployed, go to the "Overview" section of your VM and click on "Connect".

2. Select the SSH using Azure CLI. Click on "Select."

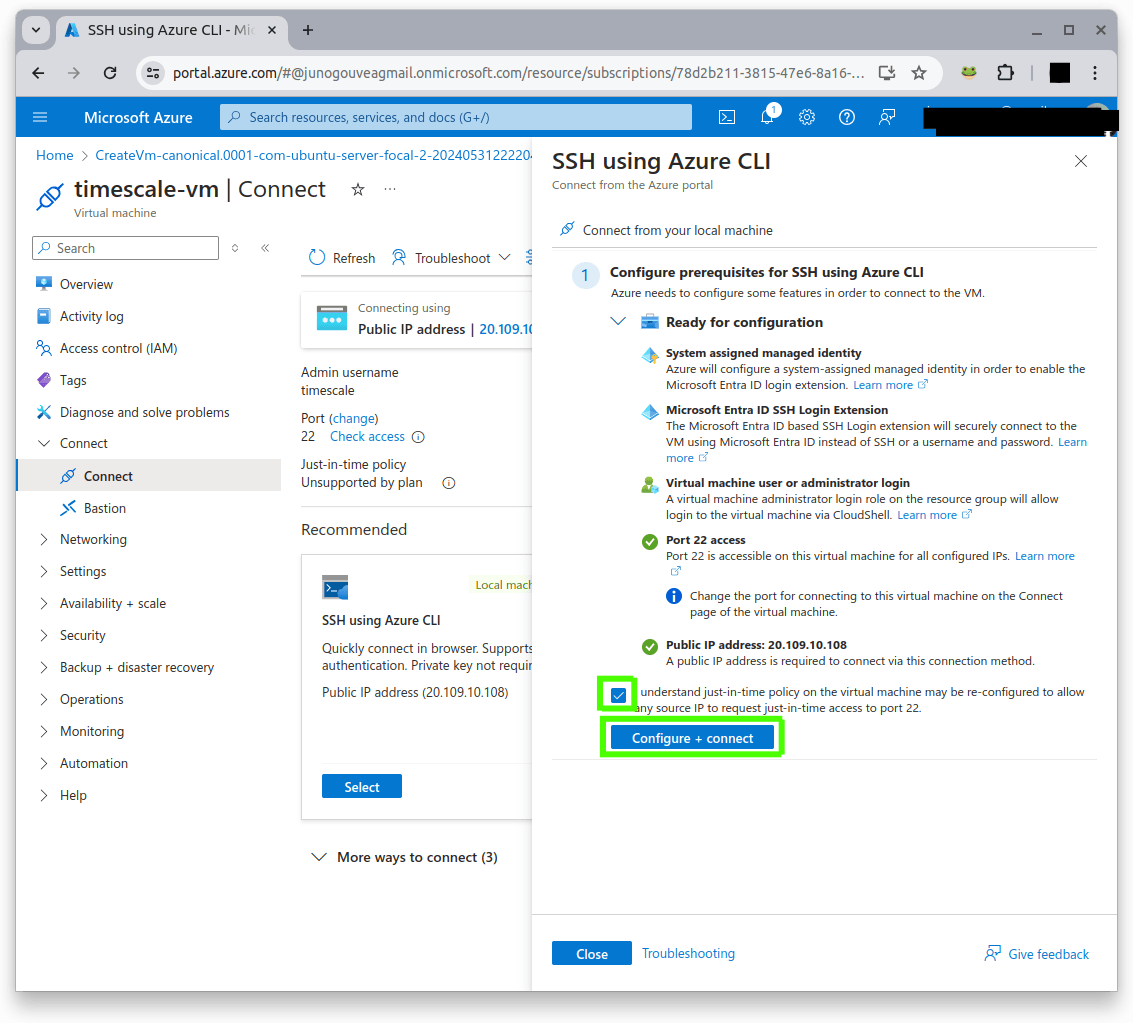

3. Follow the instructions to connect to your VM using SSH. Check the policies, and then click on "Configure + connect."

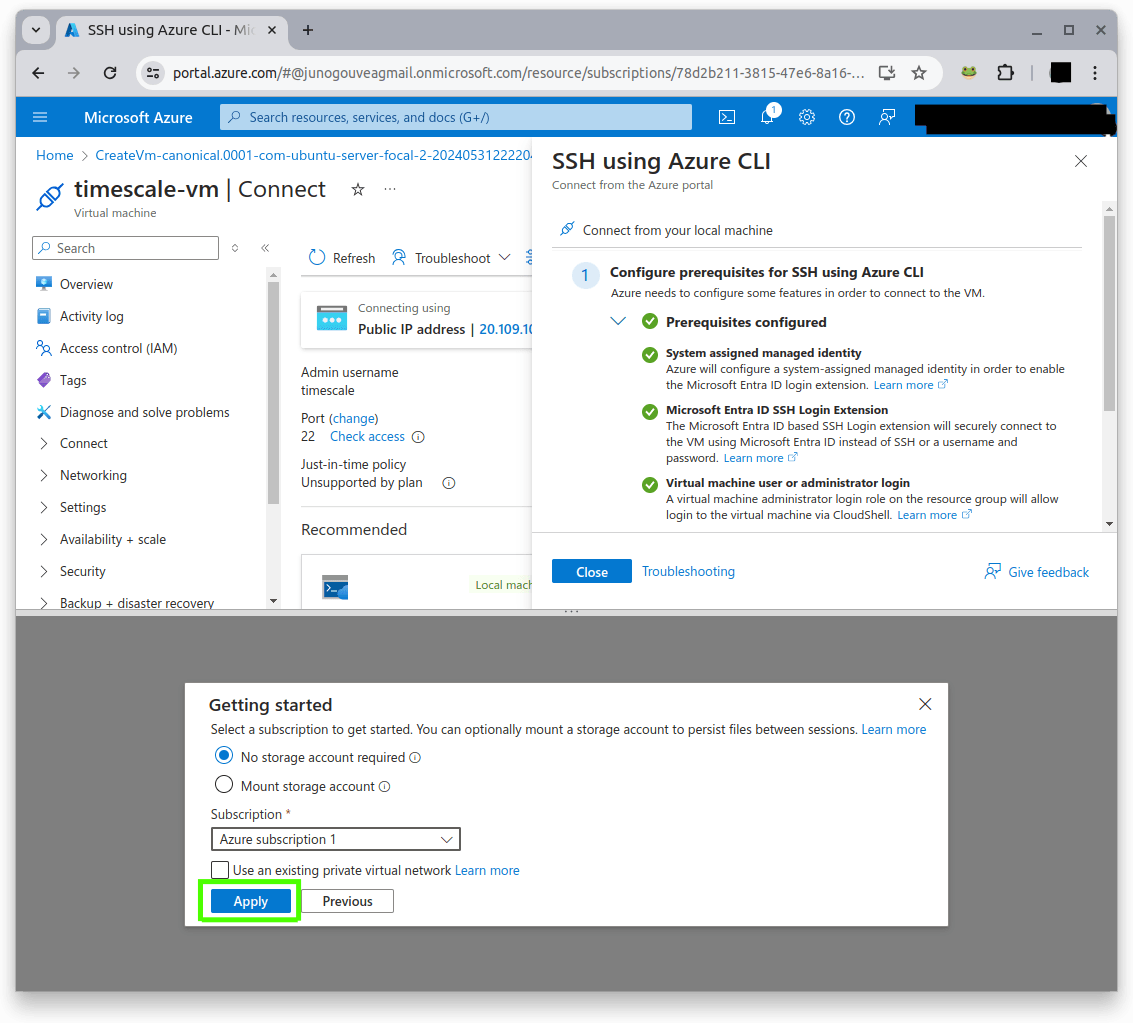

4. A tab will open. Click on "Apply" to continue.

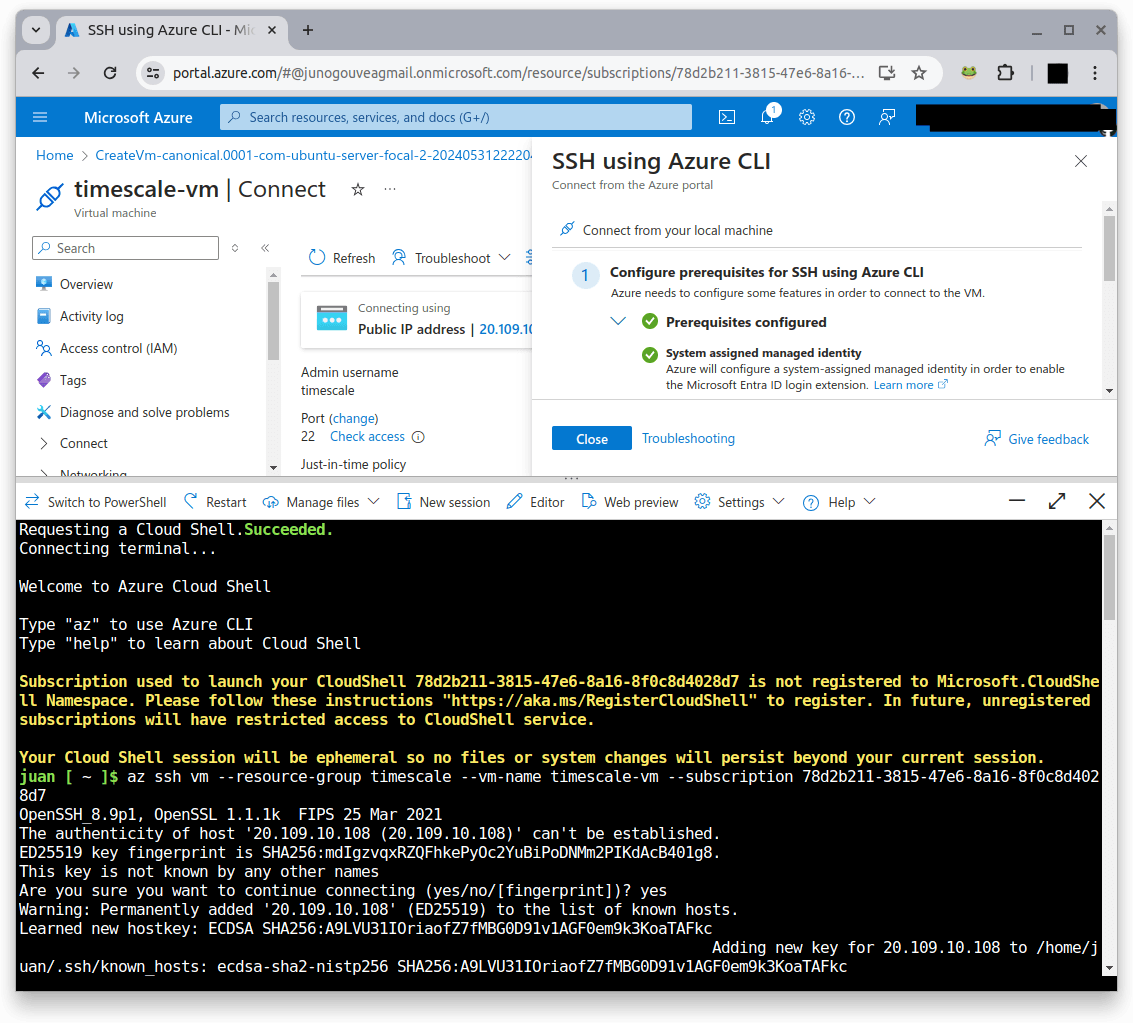

5. Finally, the terminal will open. The connection is established and now you can go on with the next step, which is installing TimescaleDB.

Install TimescaleDB

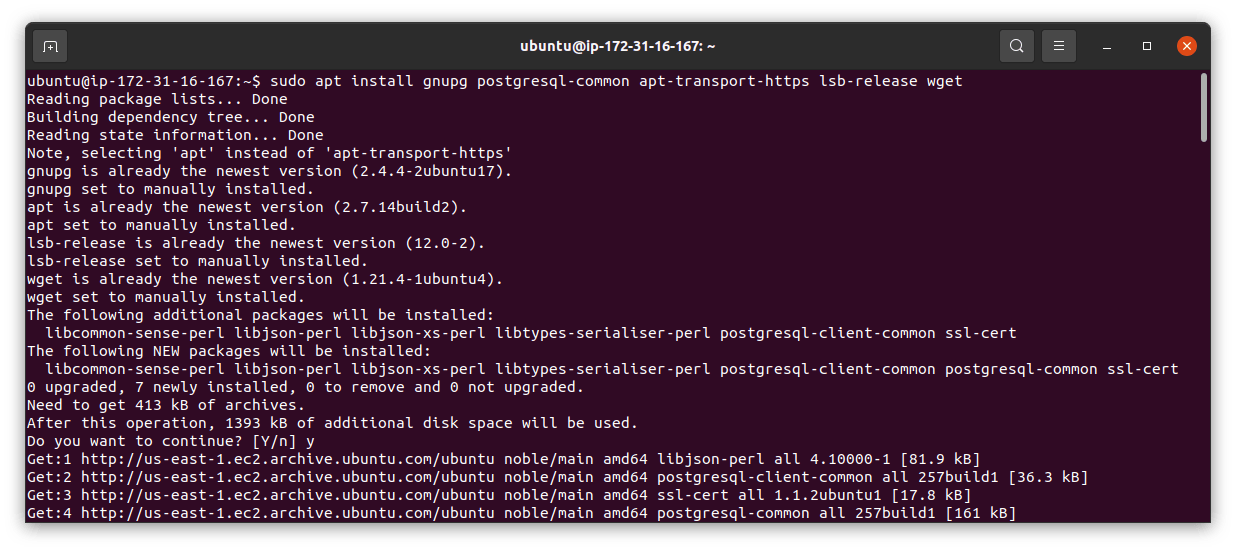

1. Add TimescaleDB PPA:

sudo apt install gnupg postgresql-common apt-transport-https lsb-release wget

sudo /usr/share/postgresql-common/pgdg/apt.postgresql.org.sh

echo "deb https://packagecloud.io/timescale/timescaledb/ubuntu/ $(lsb_release -c -s) main" | sudo tee /etc/apt/sources.list.d/timescaledb.list

wget --quiet -O - https://packagecloud.io/timescale/timescaledb/gpgkey | sudo gpg --dearmor -o /etc/apt/trusted.gpg.d/timescaledb.gpg

sudo apt update

2. Install TimescaleDB:

sudo apt install timescaledb-2-postgresql-16 postgresql-client

Configure PostgreSQL

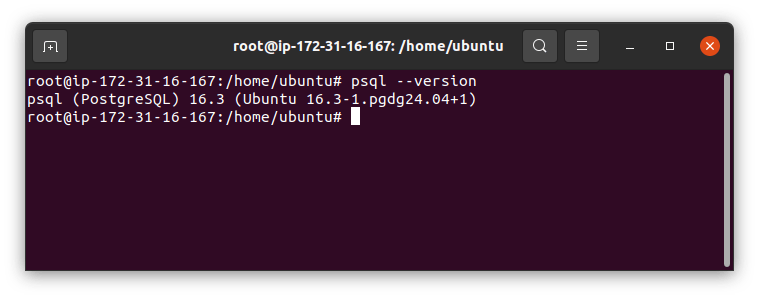

1. Check PostgreSQL Version (Ensure it shows psql (PostgreSQL) 16.x):

psql --version

2. Modify configuration:

cd /etc/postgresql/16/main
sudo chmod 644 postgresql.conf

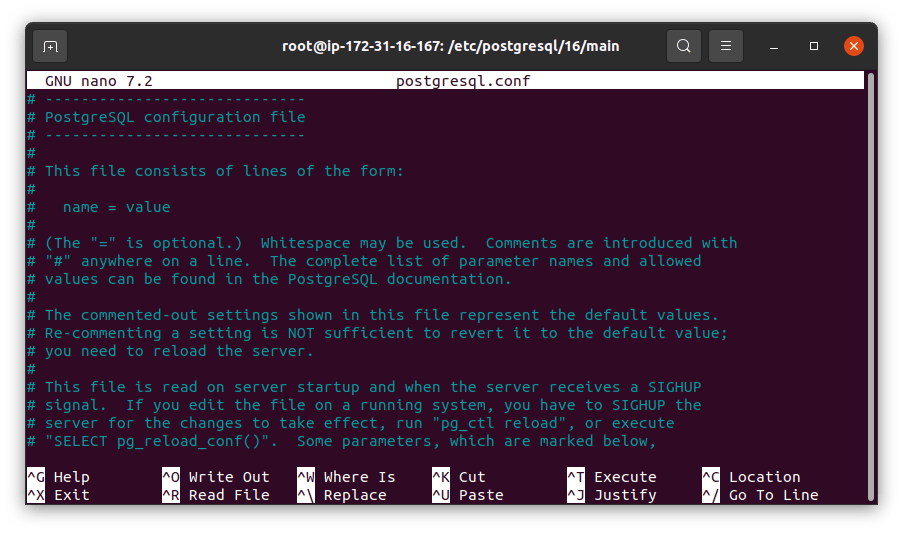

nano postgresql.conf

3. Update postgresql.conf:

Set listen_addresses to '*':

listen_addresses = '*'

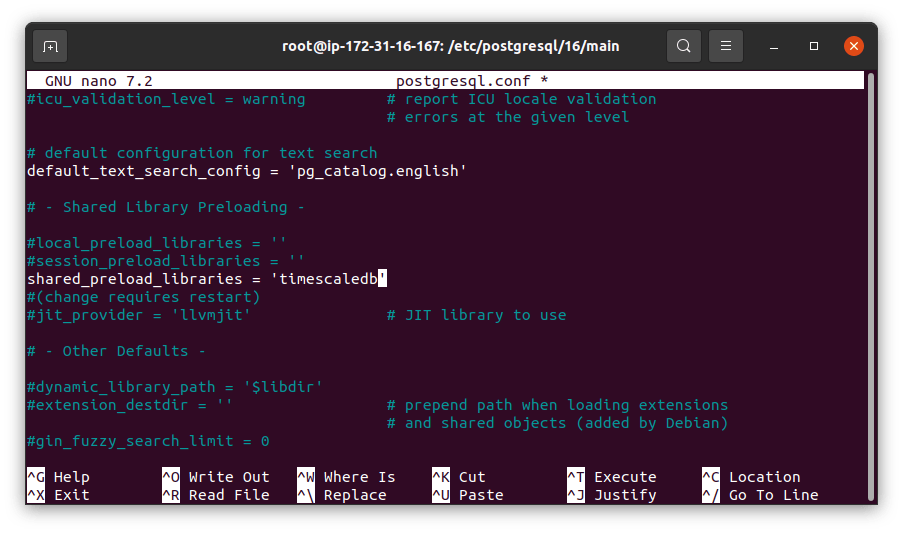

Set shared_preload_libraries to timescaledb:

shared_preload_libraries = 'timescaledb'

Save and exit the editor.

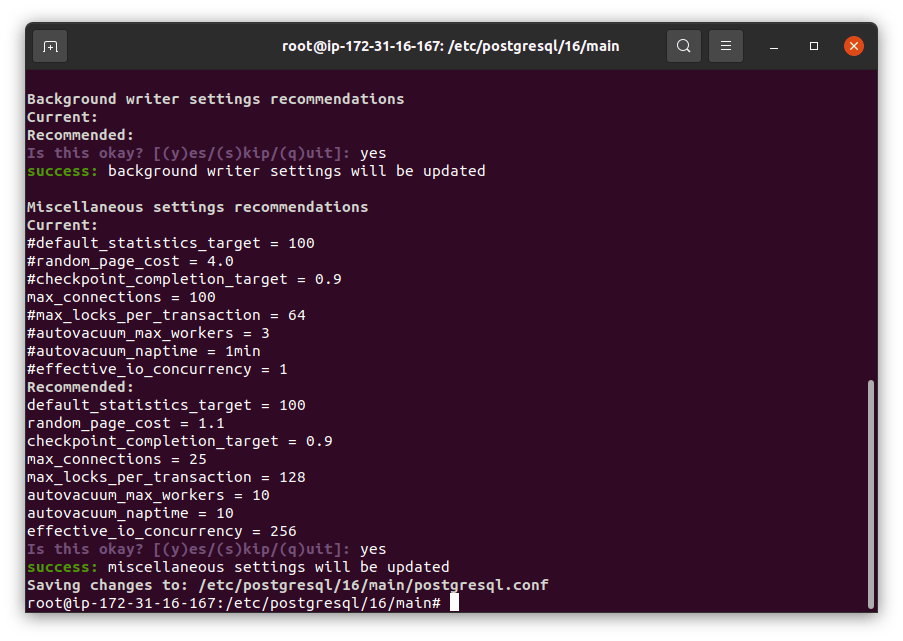

4. Tune PostgreSQL:

sudo timescaledb-tune

5. Restart PostgreSQL:

sudo systemctl restart postgresql

6. Switch to PostgreSQL user:

sudo su - postgres

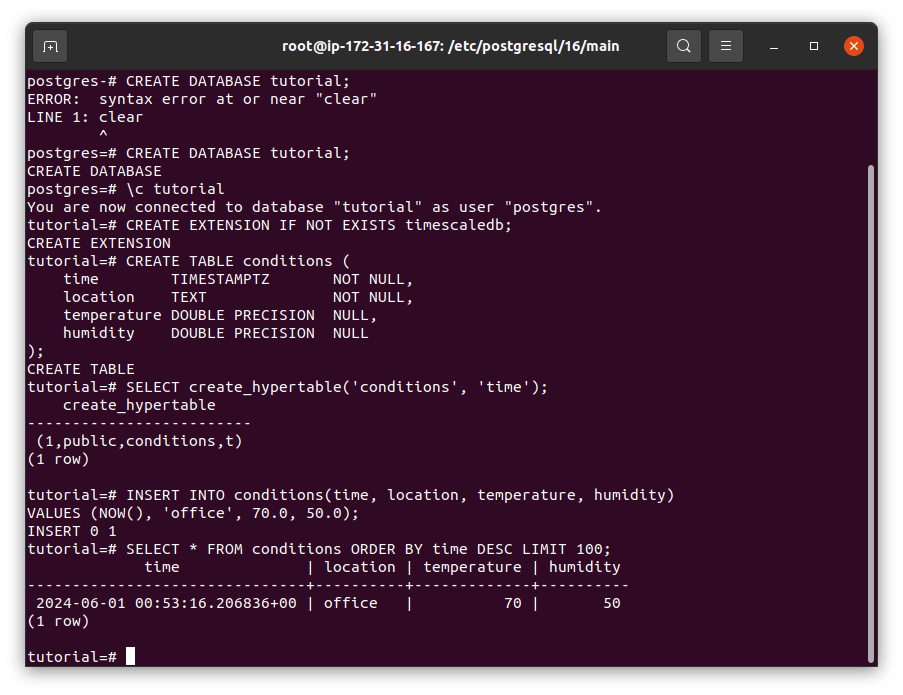

Using TimescaleDB

1. Access PostgreSQL:

psql -U postgres

2. Create database:

CREATE DATABASE tutorial;

3. Connect to the database:

\c tutorial

4. Initialize TimescaleDB extension:

CREATE EXTENSION IF NOT EXISTS timescaledb;

5. Create a hypertable:

CREATE TABLE conditions (
    time        TIMESTAMPTZ       NOT NULL,
    location    TEXT              NOT NULL,
    temperature DOUBLE PRECISION  NULL,
    humidity    DOUBLE PRECISION  NULL
);
SELECT create_hypertable('conditions', 'time');

6. Insert data:

INSERT INTO conditions(time, location, temperature, humidity)
VALUES (NOW(), 'office', 70.0, 50.0);

7. Query data:

SELECT * FROM conditions ORDER BY time DESC LIMIT 100;

Next Steps

You now have TimescaleDB up and running on Azure. Explore more with sample datasets and advanced tutorials available in the TimescaleDB documentation. If you have any questions, feel free to join our Slack community or check out our GitHub repository (GitHub ⭐ are welcome!).
