Category: All posts
Oct 09, 2024
Posted by
Blagoj Atanasovski
Migrate your workload from InfluxDB to TimescaleDB with just a single command
Users are often asking us how to migrate off of InfluxDB because they want the reliability and flexibility of TimescaleDB. To make it easier for them, we are introducing a new migration tool called Outflux.
Designed to help users seamlessly migrate from InfluxDB to TimescaleDB, Outflux is built in a modular fashion, enabling users to either migrate schema or data or both directly into TimescaleDB. It’s easy to use, configurable, and most importantly, it’s fast.
In this post, we will first cover the motivations behind creating Outflux, then dive deeper into how we built it, how it works, and how to get started.
[Or jump straight to the tutorial.]
We give props to InfluxData for being an early entry in the time-series database market, but as with any technology, one-size does not fit all. Aside from receiving feedback from our users, we also saw a visible market gap between the services InfluxDB provides, and what users actually need (which led to the birth of TimescaleDB).
Early on we recognized that working with IoT data was a whole new ballgame than the DevOps workloads InfluxDB is designed for. The ability to combine your time-series data with your relational data (and often, geo-spatial data) is becoming increasingly important for organizations. TimescaleDB is optimized for these types of workloads and gives organizations the option to scale from the cloud to the edge.
We’d also be remiss not to touch on the fact that TimescaleDB is built on the SQL open-standard. This allows organizations to unify under a single query language that is well known among developers across the globe. InfluxData initially decided to create their own SQL-like query language called InfluxQL, but that had quirks and gotchas that tripped up developers. Then they created a new language, Flux, to solve the issues associated with InfluxQL. Now their users are faced with learning a whole new language which creates a split ecosystem and even more confusion. Not ideal. (More on SQL vs. Flux here.)
We’ve benchmarked TimescaleDB against InfluxDB and encourage you to review the results. You might just find that InfluxDB is satisfactory for your needs, or you might decide that it’s time for an upgrade and switch to TimescaleDB.
After some careful evaluation and research, we discovered that several API clients exist for InfluxDB for a variety of programming languages including Python and Go. The Go client is maintained by InfluxData themselves, and using this API client allowed us to tailor the tool to our needs.
We found that we could control:
From here, we built outflux as a series of libraries connected in one CLI that selects data from InfluxDB using their HTTP API, discovers and transforms the data schema, and imports it into TimescaleDB concurrently.

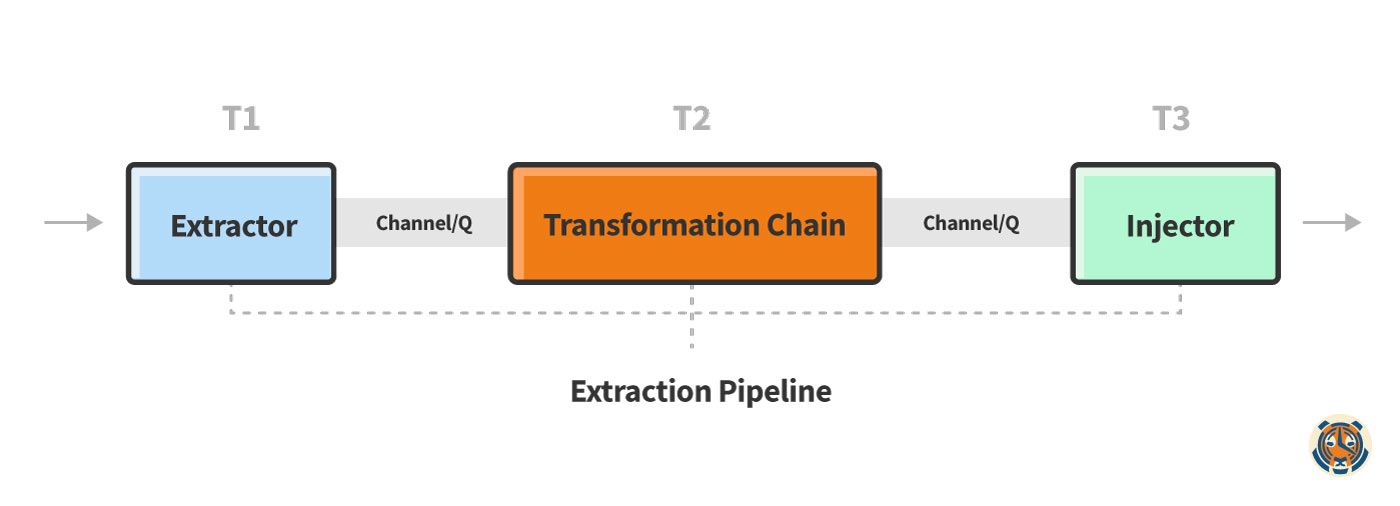

Underneath the covers, Outflux implements an Extraction Pipeline that has three stages:
Each of the components work independently of each other in a separate coroutine/thread. Multiple pipelines can be used to export each measurement in a concurrent fashion. The Extraction Pipelines are spawned, joined and managed by the main Outflux component. The figure below illustrates the data flow once the Extraction Pipeline is in place.
Now that you know more about Outflux’s internal framework, you are ready to get started! Outflux is an open-source tool and the code is available on GitHub in a public repository.
Using the tool is easy and involves just a simple command: `migrate`. Outflux manages the schema discovery, validation, and creation. It also handles exporting and importing data from an input database to an output database.
Before you begin setting up Outflux you need to ensure you have 1) a running instance of InfluxDB at a known location and a means to connect to it and 2) TimescaleDB installed and a means to connect to it.
If all the pre-requirements are met, you can begin installing Outflux by...
If you navigate to where you extracted the archive and execute:
$ ./outflux --help
Outflux offers the capabilities to migrate an InfluxDB database, or specific measurements to TimescaleDB. It can also allow a user to transfer only the schema of a database or measurement to TimescaleDB
Usage:
outflux [command]
Available Commands:
help Help about any command
migrate Migrate the schema and data from InfluxDB measurements into TimescaleDB hypertables
schema-transfer Discover the schema of measurements and validate or prepare a TimescaleDB hyper-table with the discovered schemaYou will see the help output for Outflux, a brief explanation of what it can do, the usage, and available commands.
For instructions on how to set up Outflux from source, you can visit the README. For step-by-step instructions on how to get started, please read our tutorial.
Note: Outflux currently only supports bulk migrations. Live, continuous migrations from InfluxDB will be supported with other upcoming solutions.
Are you ready to migrate off of InfluxDB and upgrade to TimescaleDB? Yes? We thought so! As mentioned above, you can follow the tutorial for in-depth instructions. Be sure to check out the Outflux page for more information and ways to contact us.
If you are new to TimescaleDB, follow these installation instructions. (Note: If you are just getting started, we encourage you to check out our features matrix to see which version of TimescaleDB is best for you.)
Outflux is free to use! TimescaleDB is also free to use, but if you are looking to upgrade to TimescaleDB Enterprise, we offer different pricing options based on your needs.
Of course! We’ve benchmarked TimescaleDB vs InfluxDB and you can read the results on our whitepaper.
We are glad you asked! Read this post to learn all about the two query languages.
No, Outflux currently only supports bulk migrations, so active inserts into InfluxDB after Outflux is used will not migrate over. Continuous migrations from InfluxDB will be supported with other upcoming solutions.
